WAHSURE
Wahsure Wahsure 100 Pcs 22-14 AWG Twist On Wire Connector, Wire Nut
Brand Name: WAHSURE
Model: PT, RT, SS
Certificate: SGS Certificate, ISO9001, ISO14001, IATF16949, UL, CE Material: PVC, with spring inside
Applications: Widely used in all kinds of electrical products, lighting and home wiring equipment
Feature: Peelwire coat, insert the wire in, then tighten.
Character: wire arranges from 22 to 14 AWG
Usage: Peel wire coat ,insert the wire in, then tighten
Certificated: UL

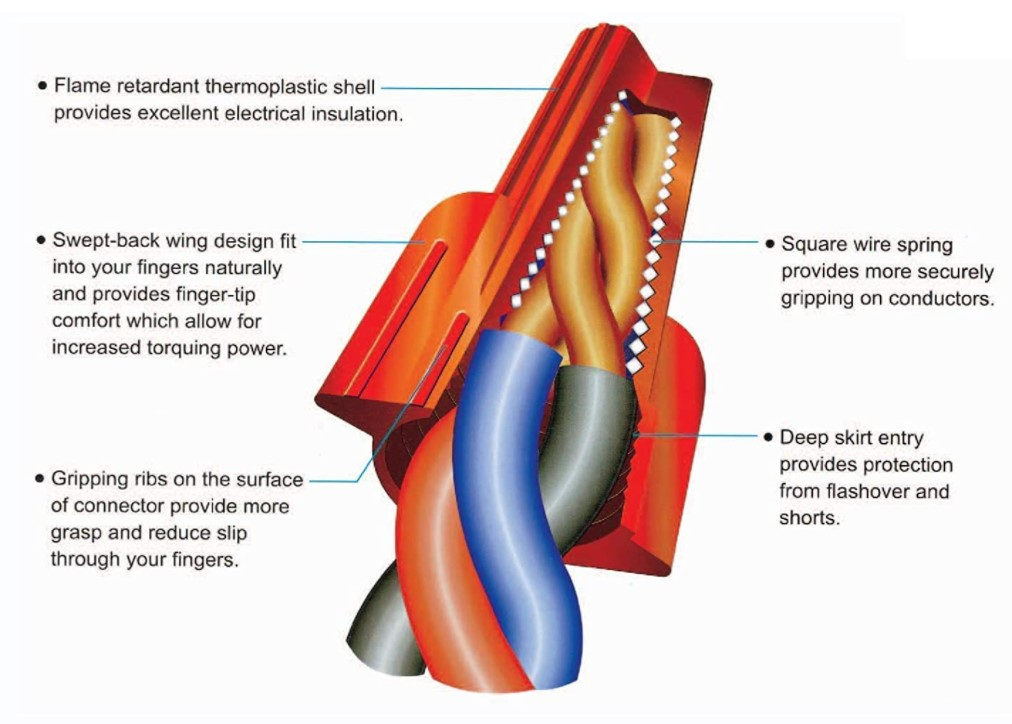

Housing: materials nylon66, UL 94V-2, good insulation properties refractory ·Spring: Steel, tough and solid
Character: 5 models in total, wire arranges from 22 to 14 AWG
Applications: Widely used in all kinds of electrical products, lighting and home wiring equipment
| Item | HS-P1; | HS-P2; | HS-P3; | HS-P4; | HS-P6; | |||||||
| Material | PVC, with spring inside | |||||||||||
| Character | wire arranges from 22 to 14 AWG | |||||||||||
| Certifications | SGS Certificate, ISO9001, ISO14001, IATF16949, UL, CE | |||||||||||
| Model | PT, RT, SS | |||||||||||
| Quantity | 100 pcs | |||||||||||
| Weight | 134 g | |||||||||||
| Color | Orange | |||||||||||
| Returnable | 90 DAYS | |||||||||||
| Manufacturer Warranty | 1 Year Limited | |||||||||||

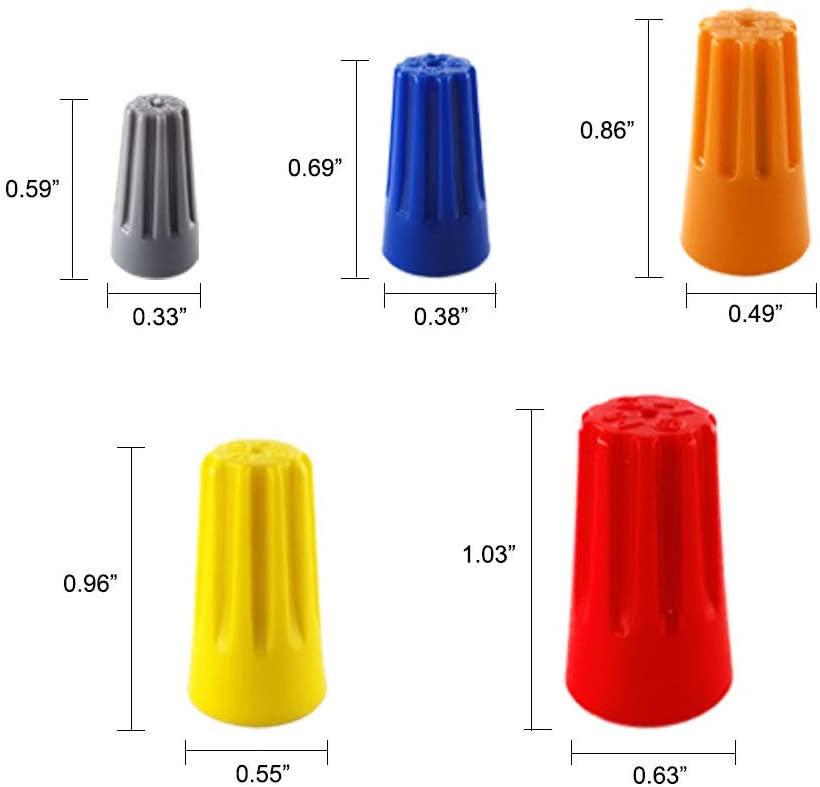

Different color is different size !
|
Wire Nuts Item No. |
H(mm/in) | W(mm/in) | D(mm/in) | SUITABLE WIRE | COLOR | |
| HS-P3 | 22/0.88 | 12/0.48 | 9.9/0.396 | 22-14 | Orange | |
| HS-P1 | 15.2 | 8.6 | 6.7 | 22-14 | GRAY | |
| HS-P2 | 17.6 | 9.8 | 7.4 | 22-14 | BLUE | |
| HS-P4 | 24.5 | 14 | 11 | 22-10 | YELLOW | |
| HS-P6 | 26.5 | 16.4 | 13 | 22-8 | RED |
FAQ:
|
Q:is it true you should only use a wire nut once? A:I have reused them for years. Inspect it first to ensure it is not damaged. Some nuts actually come apart when you “unscrew” them. If the coil inside is loose, discard it. Otherwise reuse should not be an issue |
|
Q:Stupid question, but inside the plastic cap is metal and I'm capping a live doorbell wire. Is it safe for the wire to touch the metal inside cap? A: The metal inside is what tightens the wires together and provides the good connection. As long as you don’t cut the plastic on the wire but you are fine. Also as an added protection wrap the outside of the wire nut with electrical tape. Good luck! |
|
Q:UL Listed? A:Yes, UL certificated |
