WAHSURE 500/Pack,Red Winged Wire Nuts Twist-on Electrical Wire Connectors,Spring Insert Ribbed Caps 18-8 AWG,HP13 Type Household Purpo
● Character:wire arranges
from 22 to 10 AWG
● Applications: Widely used in all kinds of electrical products, lighting and home wiring equipment
● Feature: Peelwire coat, insert the wire in, then tighten.
● Material: PVC, with spring inside
● Certificated: UL
Wire connector P13
To be sold only with installation instructions
Instructions:
1. Turn off power before installing or removing connectors.
2. Select the appropriate wires according to the below wire combinnations and each wire shall be stripped with appropriate stripping length of 23mm
3. Before insertion into the connector,wire strands shall be reshaped with ends even.However,pre-twisting is unnecessary.
4.Tighten connector clockwise and make sure wires are installed firmly after wires are fully inserted into the connector.
5.Push wires into connector and screw on until two twists are visible in wires.
FOR USE WITH COPPER TO COPPER
Insulation Temperature:105℃（221℉）
Flammability:V-0
Voltage Rating:300V Max.
Listed as a PRESUURE-TYPE wire connector on the following solid and/or stranded wire combination:
For UL Listed to U.S. and Canadian safety standrads
(4) No.12 (3),(4) or (5) No.14 (3),(4) or (5) No.16 (1) No.12 with (4) No.14
| Item | ||||||||||||
| Material | PVC, with spring inside | |||||||||||
| Character | wire arranges from 18 to 8 AWG | |||||||||||
| Certifications | SGS Certificate, ISO9001, ISO14001, IATF16949, UL, CE | |||||||||||
| Model | PT, RT, SS | |||||||||||
| Quantity | 500 | |||||||||||
| Color | Red | |||||||||||
| Returnable | 90 DAYS | |||||||||||
| Manufacturer Warranty | 1 Year Limited | |||||||||||

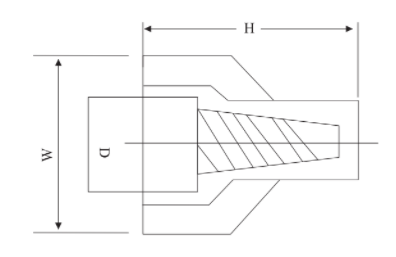

| Wire Nuts Item No. | H(mm/in) | W(mm/in) | D(mm/in) | SUITABLE WIRE | COLOR | |
| HS-HP13 | 30.5/1.2 | 23.1/0.91 | 12/0.47 | 18-8 | Red |
A variety of uses
