500Pcs Orange Wire Connector UL- Electrical Wire Cap, Insulating, Portable & Quick

WAHSURE

500Pcs Orange Wire Connector UL- Electrical Wire Cap, Insulating, Portable & Quick

Sale price$18.49
SKU: WSP310001
Color:Orange
Quantity:500
Style:Wire Connectors
Quantity:

Material: PVC, with spring inside. UL Certificated

Size:22-14 AWG wire twist nuts Orange 500 pcs in poly bag

Usage: Peel wire coat, inset the wire in, then tighten.

Feature: hold wires firmly and durable,reusable,color-coded simply separate hundred of wire combination, no need pre-twisting wire, soldering or electrical tape, no tools necessary

Purpose:homeowner or engineer who does the project of home theater,or used for hvac,lamps,audio,speaker wire,stereo wiring,automotive,marine wiring,household wiring,and any type of electric work

RISK FREE GUARANTEED - Quality guarantee and 5-star customer service. If you are not 100% completely satisfied with your screw-on wire connectors terminals, simply let us know and you will be offered a FULL refund or replacement.

H:22mm(0.87") W:12mm(0.47") D: 9.9mm (0.39") Use:22-14 AWG Color:Orange

FOR USE WITH COPPER TO COPPER CONDUCTOR
Temperature Rating:105℃(221℉)Max.
Voltage Rating:300V Max.
Listed as a PRESUURE-TYPE wire connector on the
following solid and/or stranded wire combinations:

  Safe and convenient Great for connect wires without soldering, NO electerical tape needed not tools necessary Cone-shoped spring pull wires into connectors

High-quality materials these wire cinnectors are made of high-quality plastic with high hardness and thick shell, which is not easy to age. the inner sprint rintg is made of metal, which effectively prevents instability from casusing the connection to fall off, with good conductuvity and stable connection.



Step 1

Turn off power before installing or removing connectors

Step 2

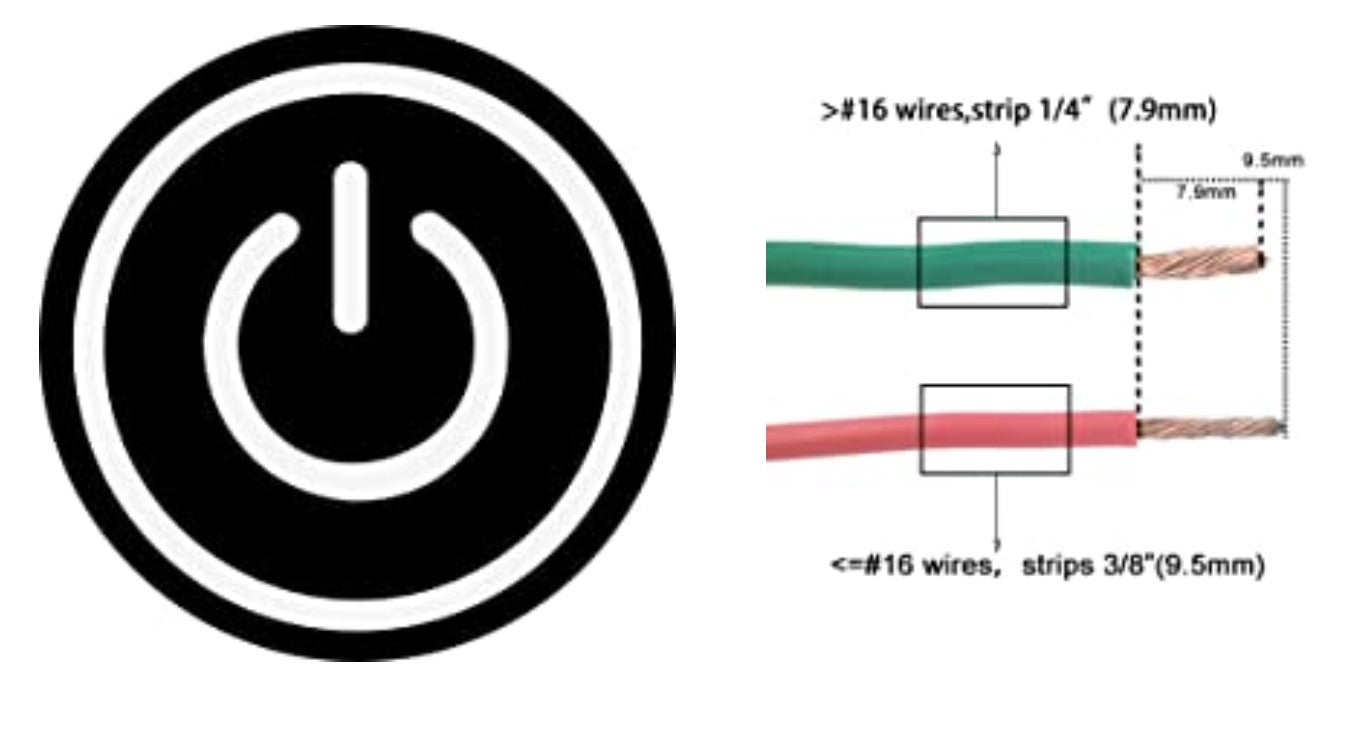

Strip solid wires 1/4”(6.4mm),strip stranded wires 5/16”(7.9mm)

Step 3

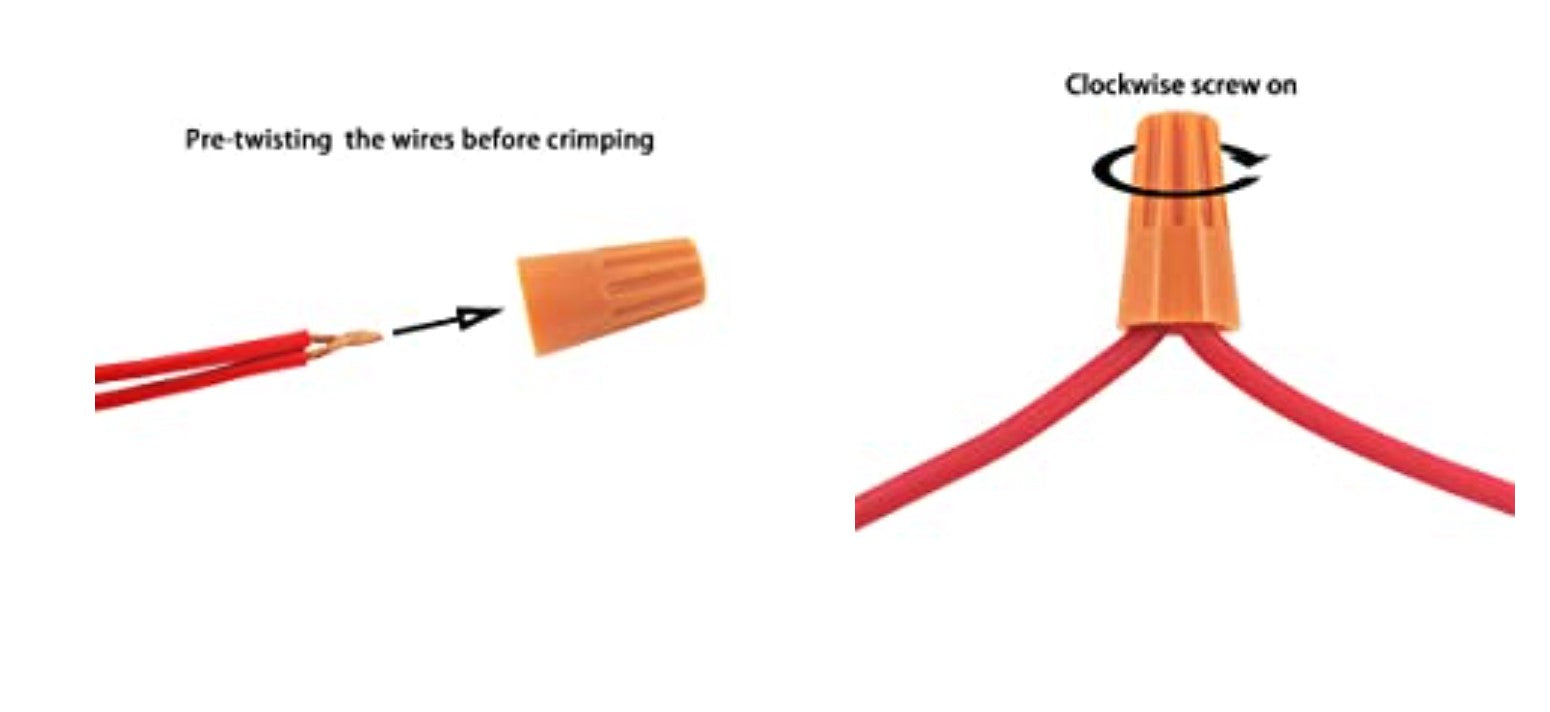

pre-twisting the wires before crimping,hold stripped wires together with ends even.Lead stranded wire slightly. Align any frayed strands or conductors

Step 4

Push wires into connector and screw on until two twists are visible in wires.

FAQ:

Q:is it true you should only use a wire nut once?

A:I have reused them for years. Inspect it first to ensure it is not damaged. Some nuts actually come apart when you “unscrew” them. If the coil inside is loose, discard it. Otherwise reuse should not be an issue

Q:Stupid question, but inside the plastic cap is metal and I'm capping a live doorbell wire. Is it safe for the wire to touch the metal inside cap?

A: The metal inside is what tightens the wires together and provides the good connection. As long as you don’t cut the plastic on the wire but you are fine. Also as an added protection wrap the outside of the wire nut with electrical tape. Good luck!

Q:UL Listed?

A:Yes, UL certificated
